LiFePo4 Battery 12V (100Ah 200Ah 300Ah) 24V (100Ah) BMS Lithium Battery
LiFePo4 Battery 12V (100Ah 200Ah 300Ah) 24V (100Ah) BMS Lithium Battery
Couldn't load pickup availability
SPECIFICATIONS
Application: RV, Solar, Backup Power, Off Grid, Boat, Trolling motor
Brand Name: MOSEWORTH
Built-in: BMS
Certificate: CE, ROHS, MSDS, UN38.3
Charging temperature: 14℉~113℉
Cycle Life: More than 6000 Times
Discharge temperature: -4℉~140℉
Material: Grade A Lithium Iron Phosphate(LiFePO4)
Nominal Capacity: 100Ah 200Ah 300Ah
Rated voltage: 24V
Type: LiFePO4
Voltage: 12V 24V
|

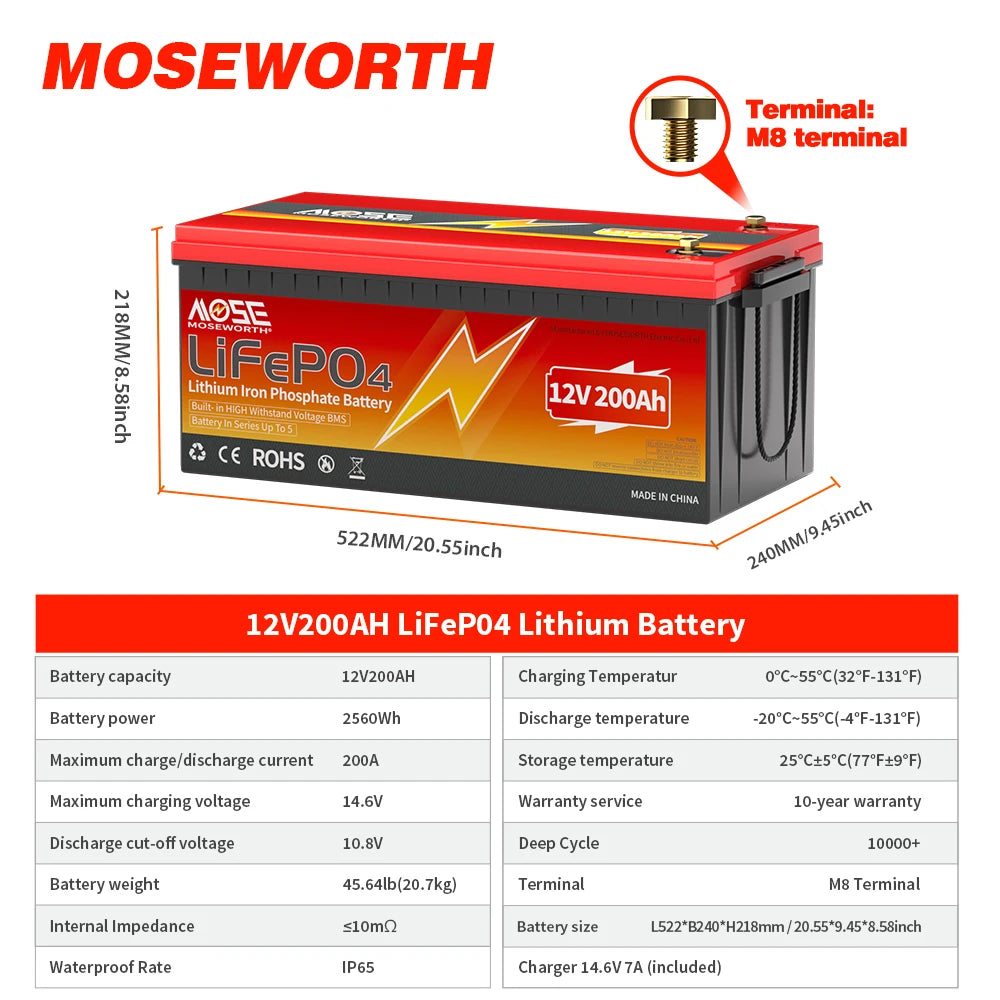

🔹12V 200Ah |
🔹12V 100Ah |

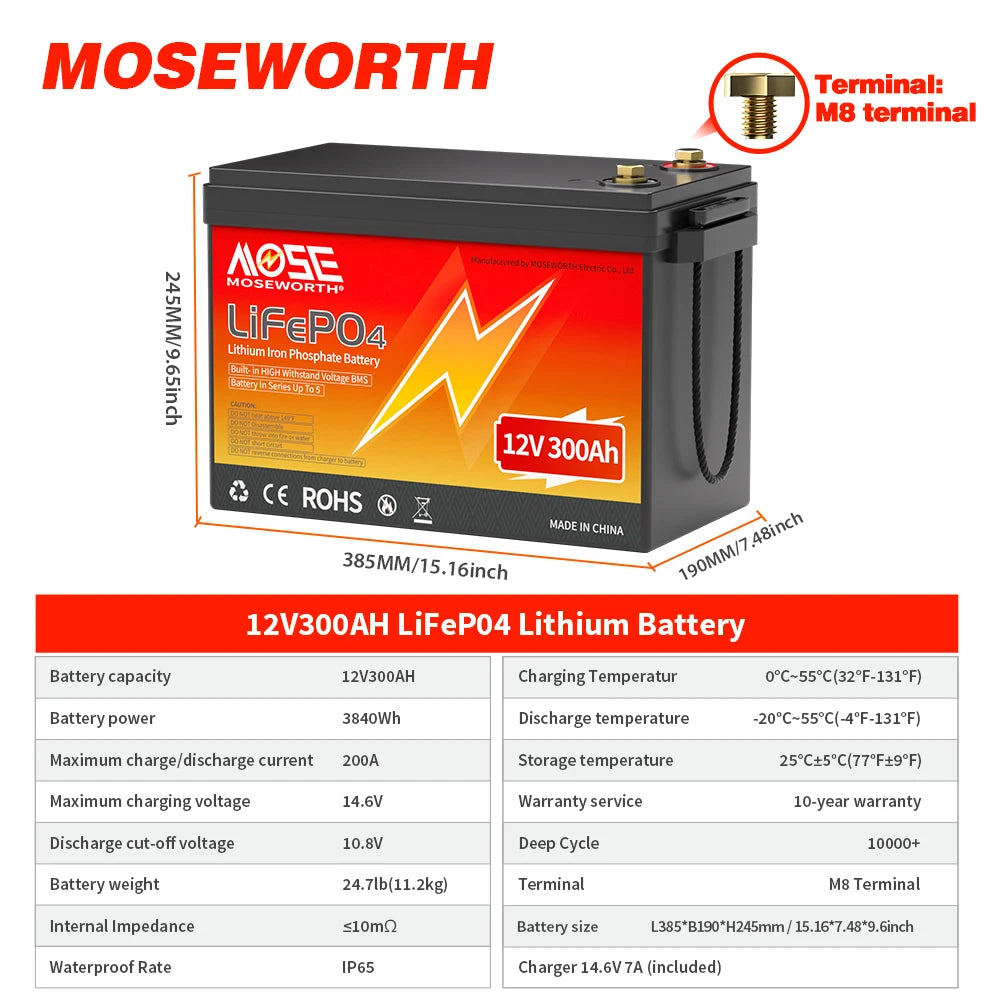

🔹12V 300Ah |
🔹24V 100Ah |
|
|
Nominal voltage |
12.8V |
12.8V |
12.8V |
25.6V |
|
Nominal capacity |
200Ah |
100Ah |
300Ah |
100Ah |
|
Charging voltage |
14.2 - 14.6V |
14.2 - 14.6V |
14.2 - 14.6V |
28.8-29.2V |
|
Energy |
2560Wh |
1280Wh |
3840Wh |
2560Wh |
|
Max. charging current |
100A |
100A |
200A |
100A |
|
Recommended charging current |
50A~100A |
20A~50A |
50A~100A |
20A~50A |
|
Max. Discharge current |
200A(400A Peak in 3~5s) |
100A(200A Peak in 3~5s) |
200A(400A Peak in 3~5s) |
100A(200A Peak in 3~5s) |
|
End voltage |
10V |
10V |
10V |
20V |
|
Deep Cycles |
≥6000 times |
≥6000 times |
≥6000 times |
≥6000 times |
|
BMS |
200A |
100A |
200A |
100A |
|

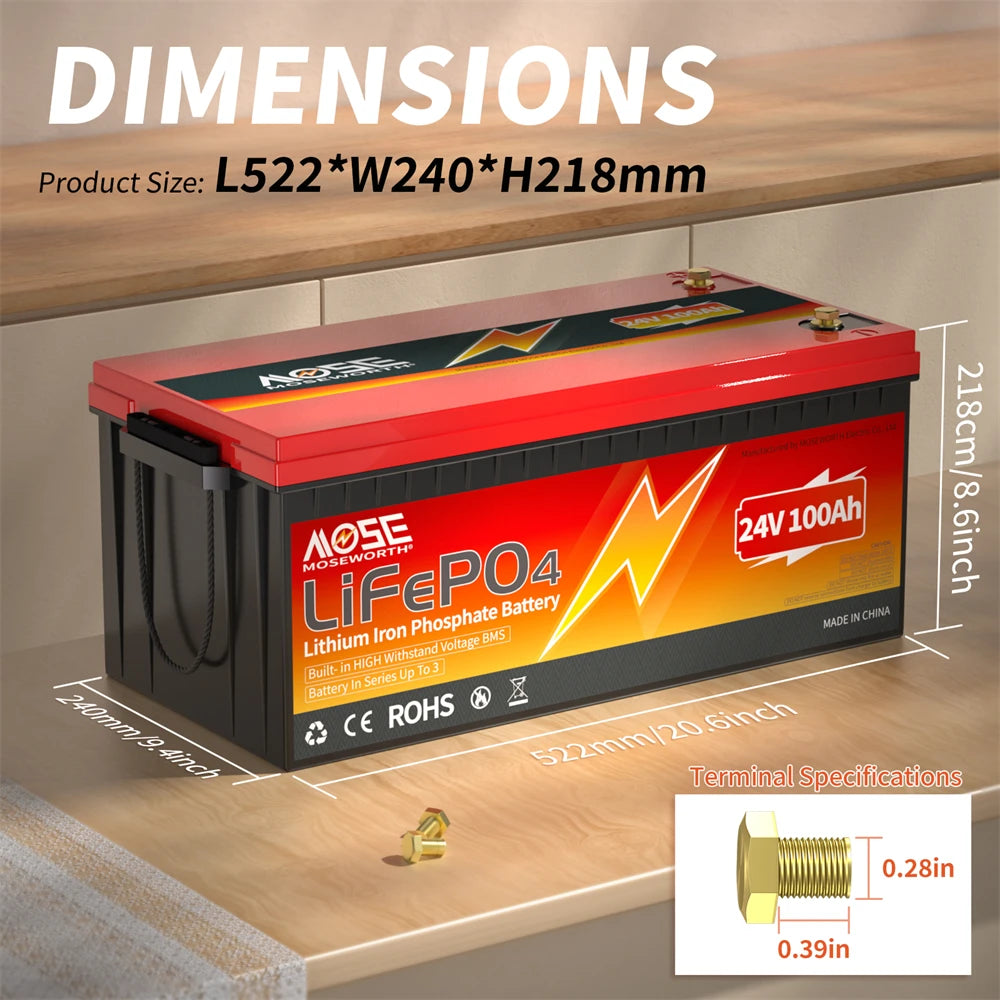

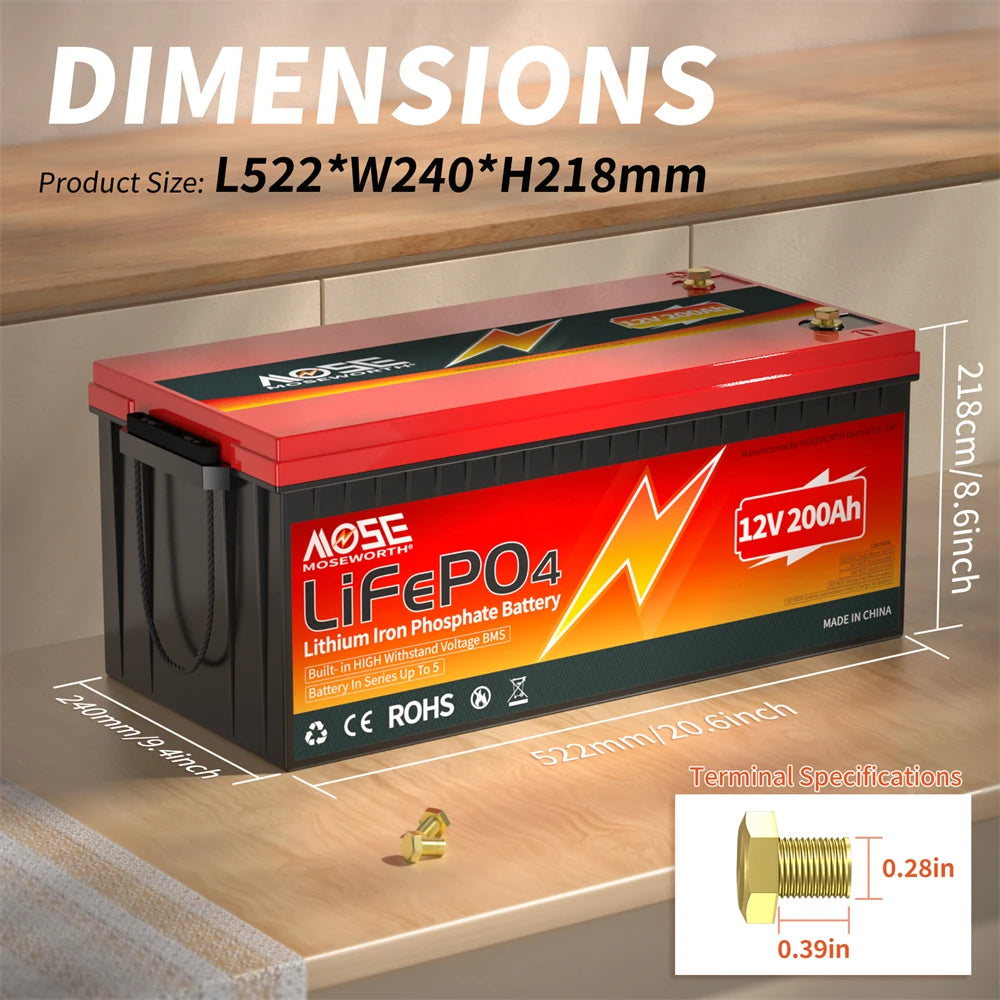

Dimensions(mm) |

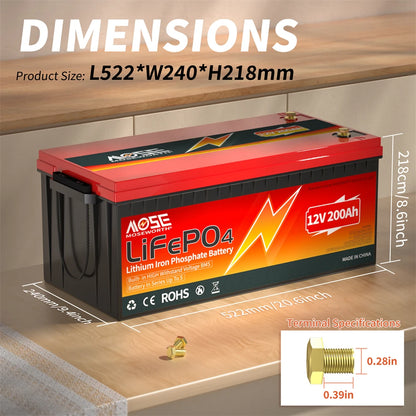

L522x W240x H218mm |

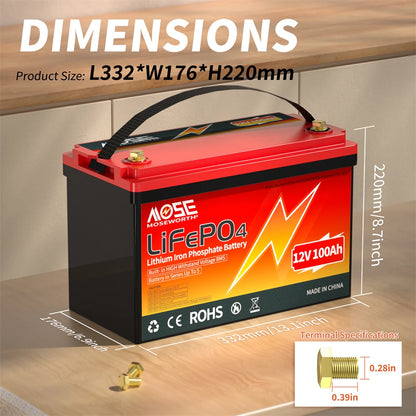

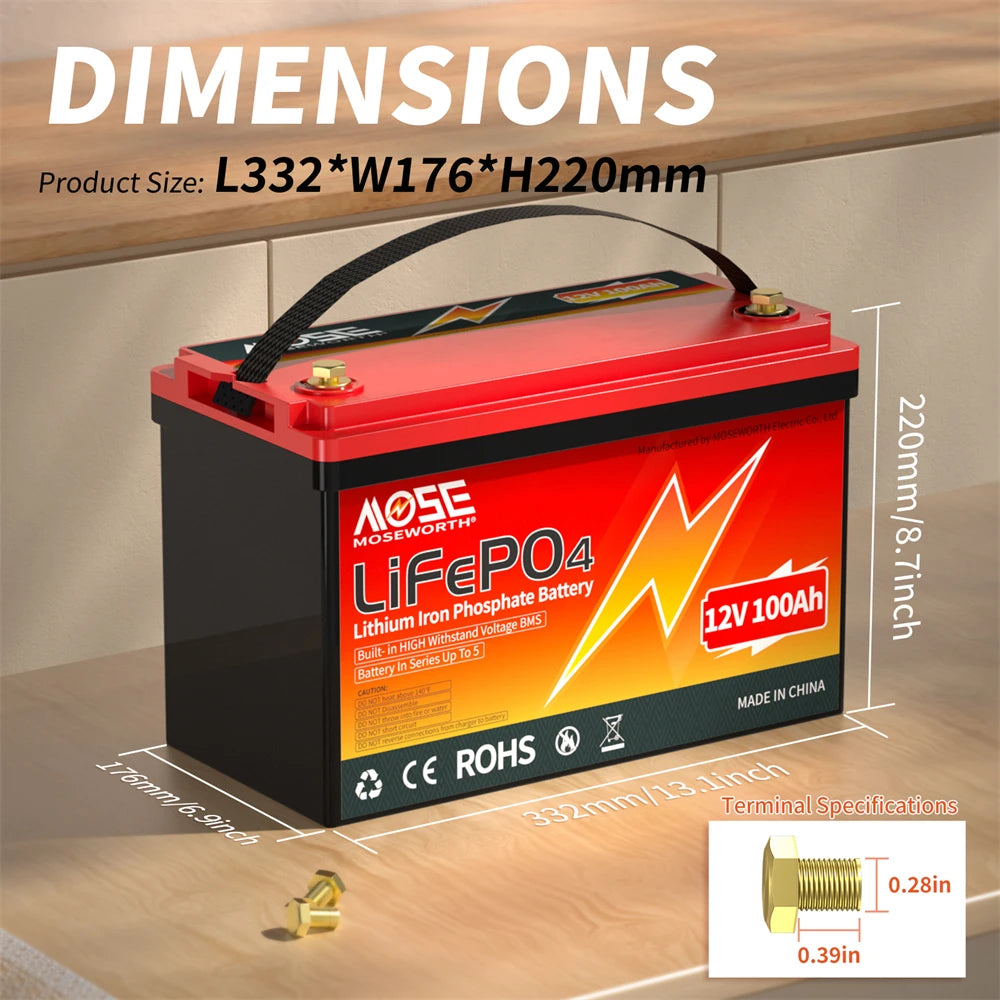

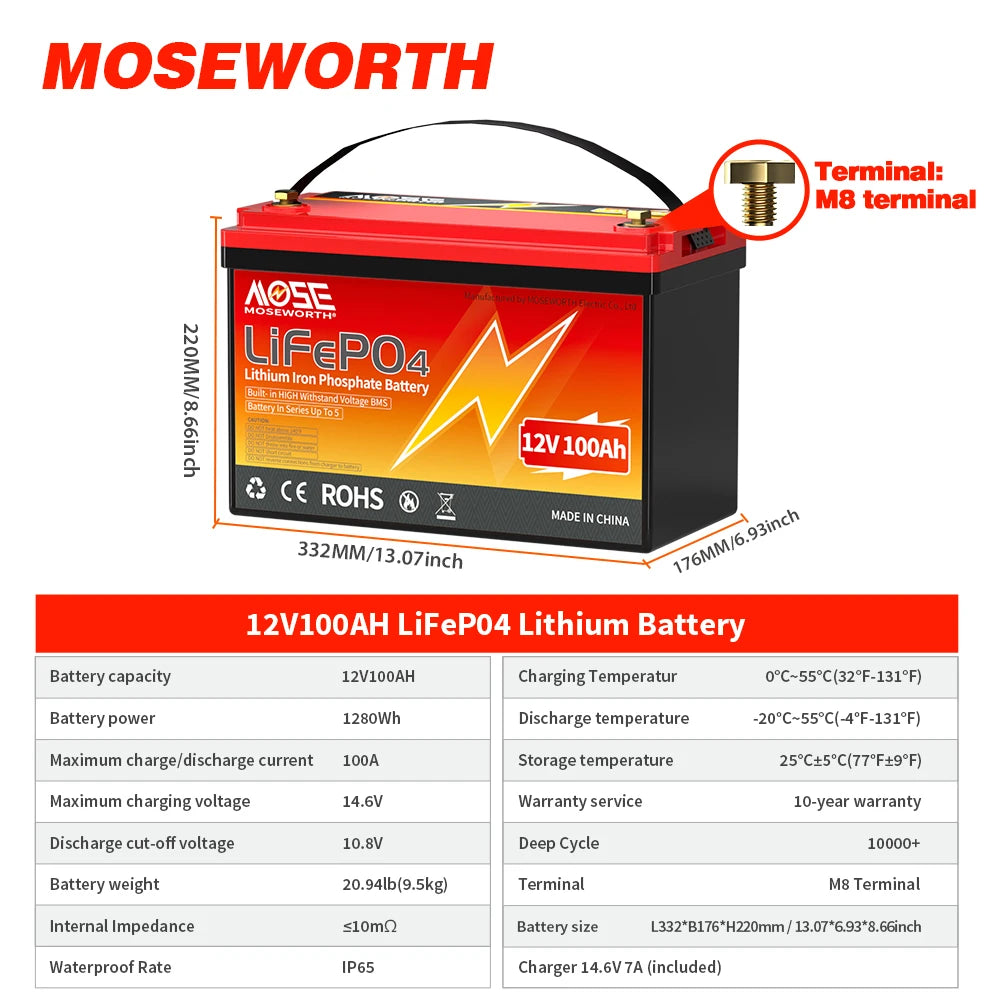

L332 x W176 x H220mm |

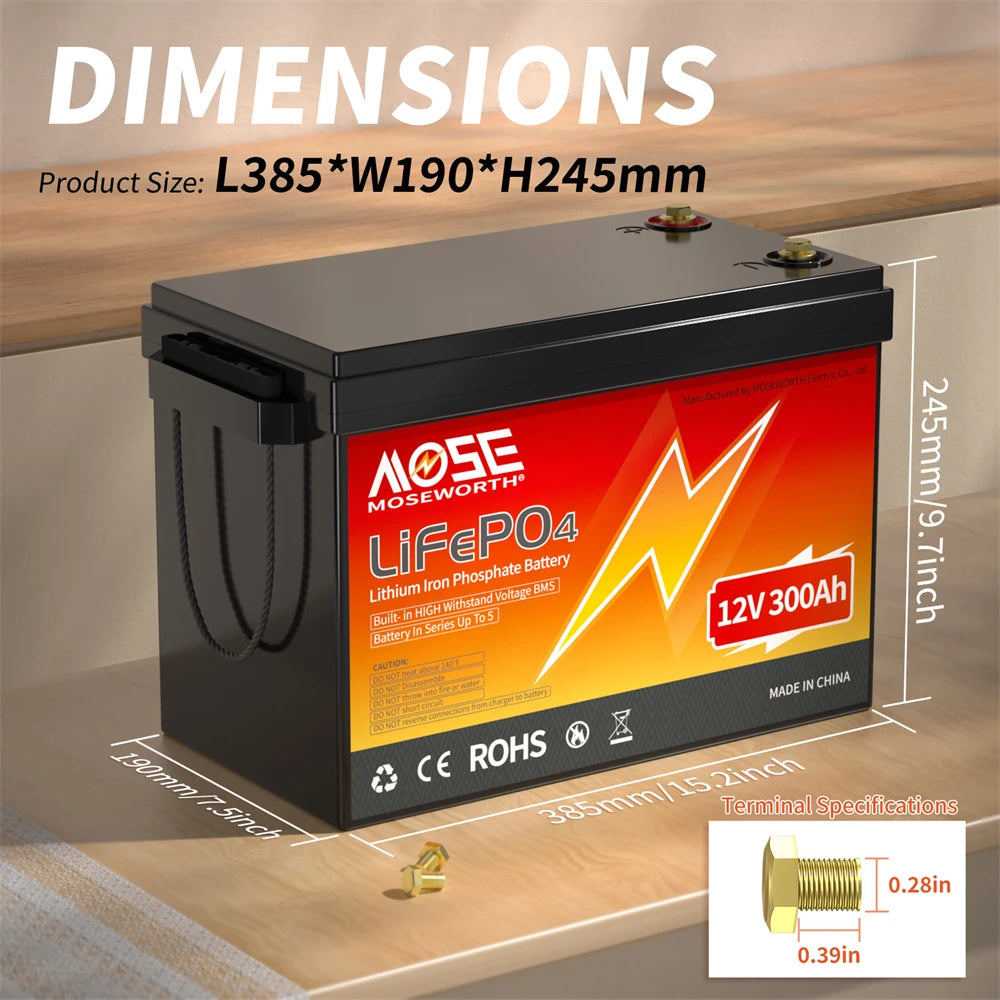

L385x W190 x H245mm |

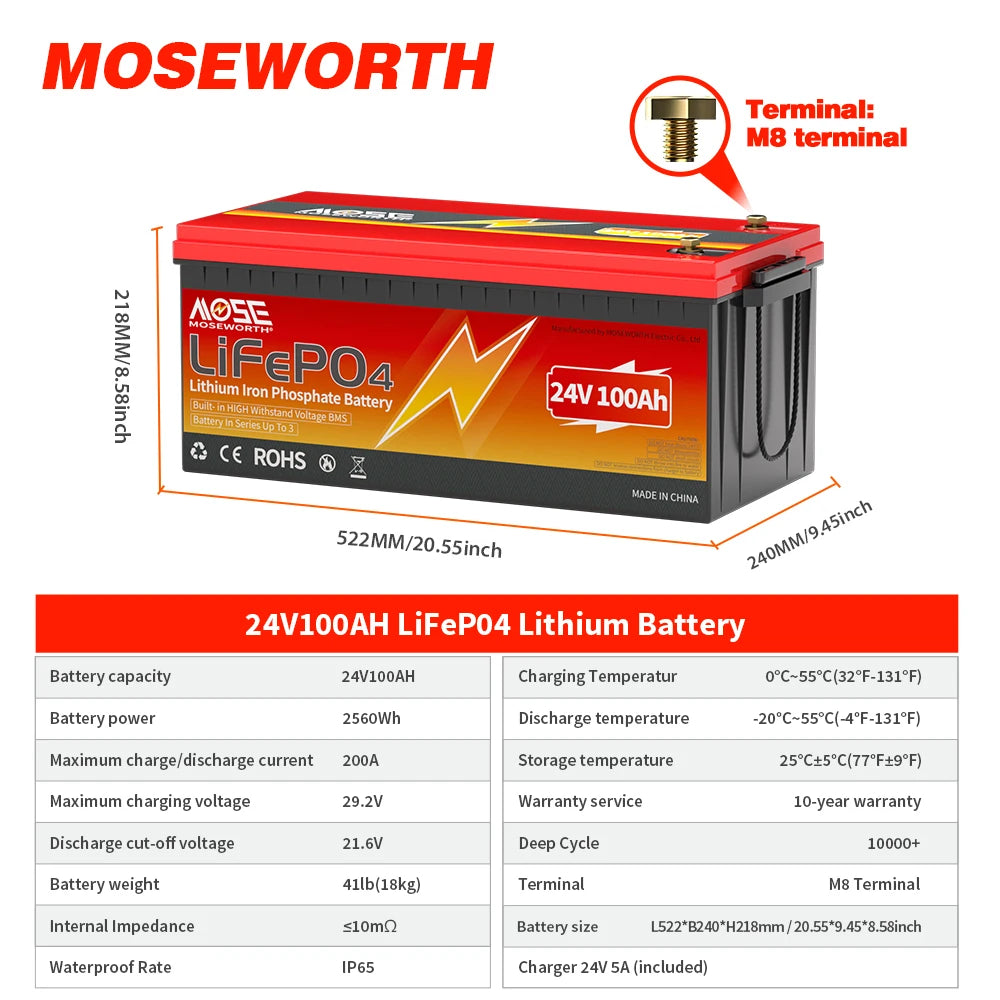

L522x W240x H218mm |
|
Number of cells |
Grade A LiFePO4 Cells |
|||
|
Battery terminals |
M8 |
|||
|
Operating temperature |
Charging:0℃ to 45℃; Discharging:-20℃ to 60℃; Storage: -10℃ to 50℃ |
|||
|
Storage conditions |
Store at ≥50% Capacity, Recharge Every 3 Months |
|||
|
Certificate |
CE ROHS MSDS UN38.3 |
|||
