SPECIFICATIONS

Certification: CE

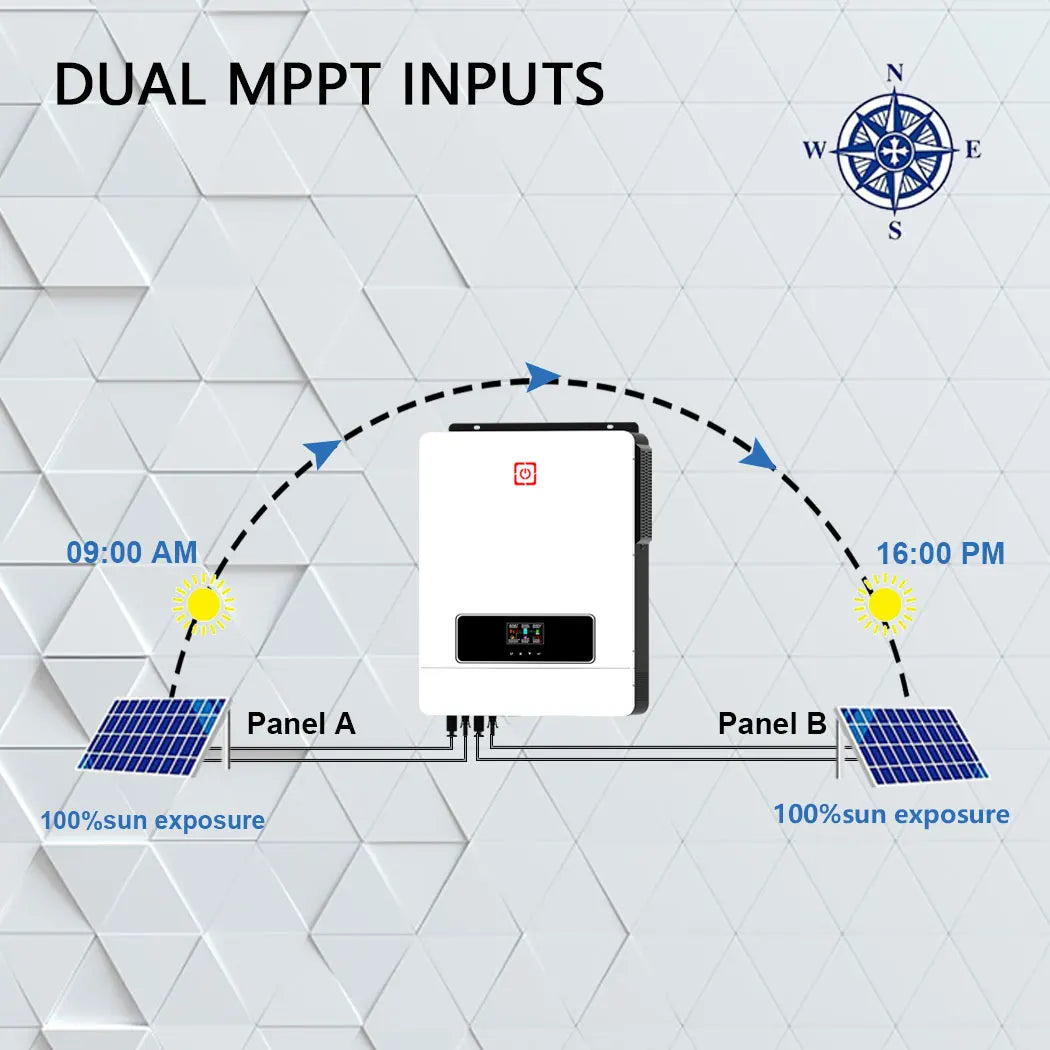

Feature 1: Daul PV In-Put

Feature 2: Second Output

Feature 4: Use with Solar PV System

Is Smart Device: Yes

Max Charging Current (AC charger plus solar charger): 160Amp

Max.PV Array Open Circuit Voltage: 500Vdc

Max.PV Array Power: 10200W

Maximum PV Input Power: 10200W

Nominal Output Voltage: 220/230/240VAC

Output Current: 160A

Output Frequency: 50Hz/60Hz(Auto sensing)

Output Power: 1 - 200KW

Output Type: SINGLE

Output Voltage Waveform: Pure Sine Wave

Size: 537mm*390mm*130mm

Type: On-Grid/Off-Grid

Weight: 17KG
