SPECIFICATIONS

12V 100AH LiFePO4 Battery Specifications:

Nominal Voltage: 12.8V

Nominal Capacity: 100Ah

Rated Capacity: 1280Wh

Battery Cell Composition: Lithium-Phosphat

Cycle Life: 4000 cycles at 100% DOD, 8000 cycles at 80% DOD, 15,000 cycles at 60% DOD

Months of Self Discharge: ≤3.5% per month at 25℃

Charge Voltage: 14.6±0.2V

Max. Charge Current: 50A/0.5C

Max. Continuous Current: 100A

Instantaneous discharge current: 200A 5second

Discharge Cut-off Voltage: 10.0V

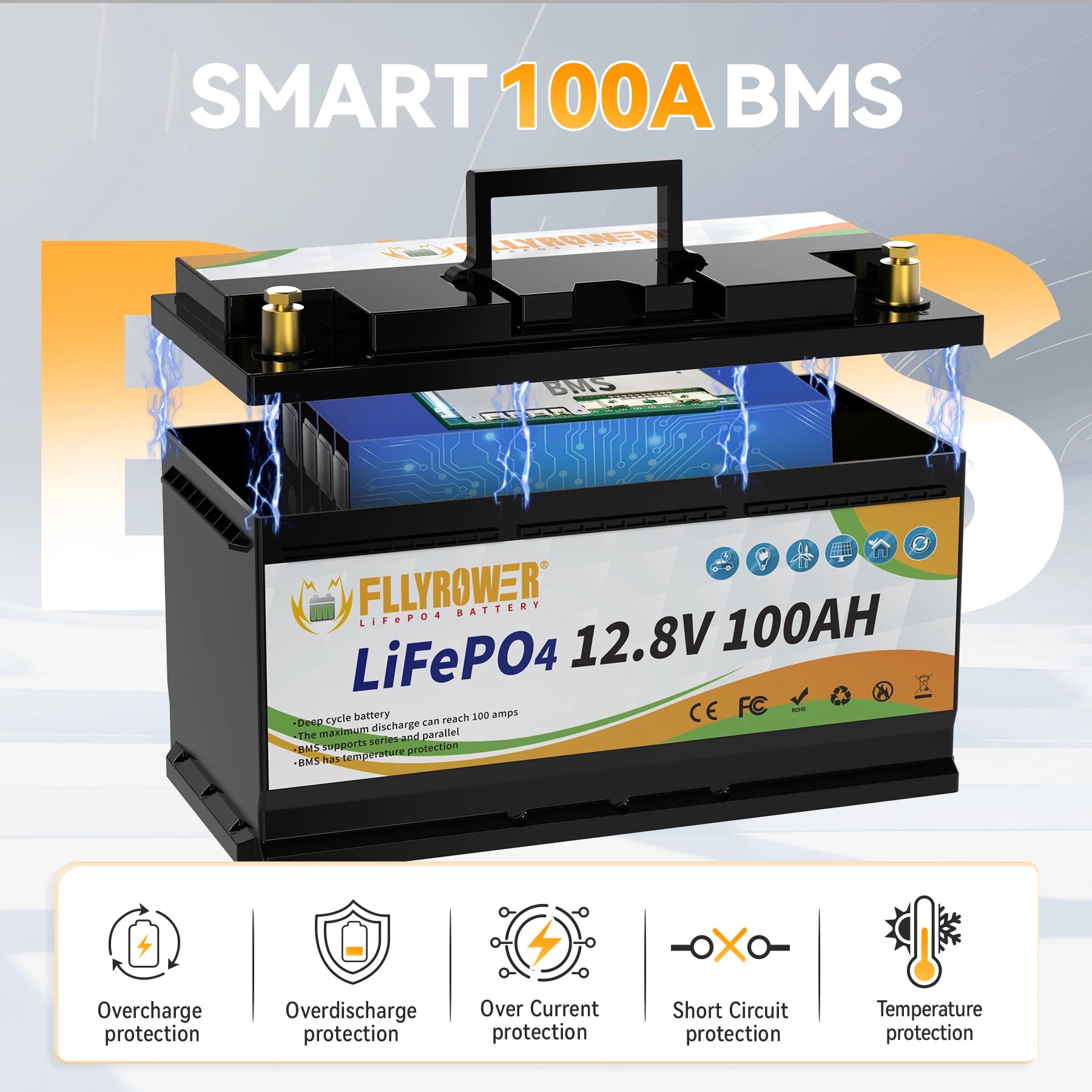

Voltage Protection Board(BMS): Yes

BMS:100A

Life Span:10 Years

Material: Lithium iron phosphate

Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity

Discharge Temperature: -30 to 60℃ (-4 to 140℉) at 60±25% relative humidity

Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity

Water Dust Resistance: IP55

Case Material: ABS

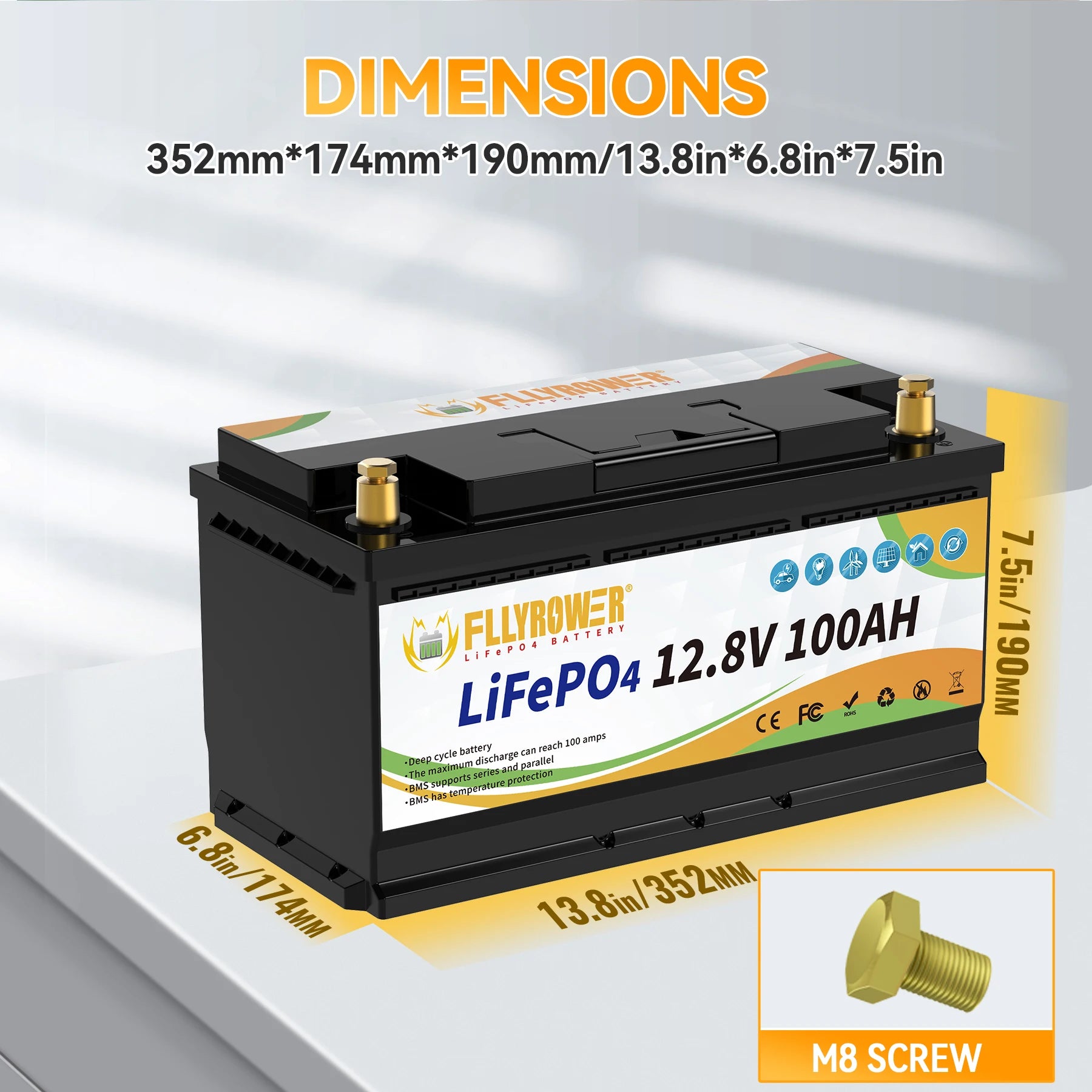

Dimension (L/W/H): 352*174*190mm

Weight: Approx. 11kg

Terminal Type: M8
